ADVENTURE ON AND OFF-ROAD RIDING
ADVENTURE ON AND OFF-ROAD RIDING
Marin

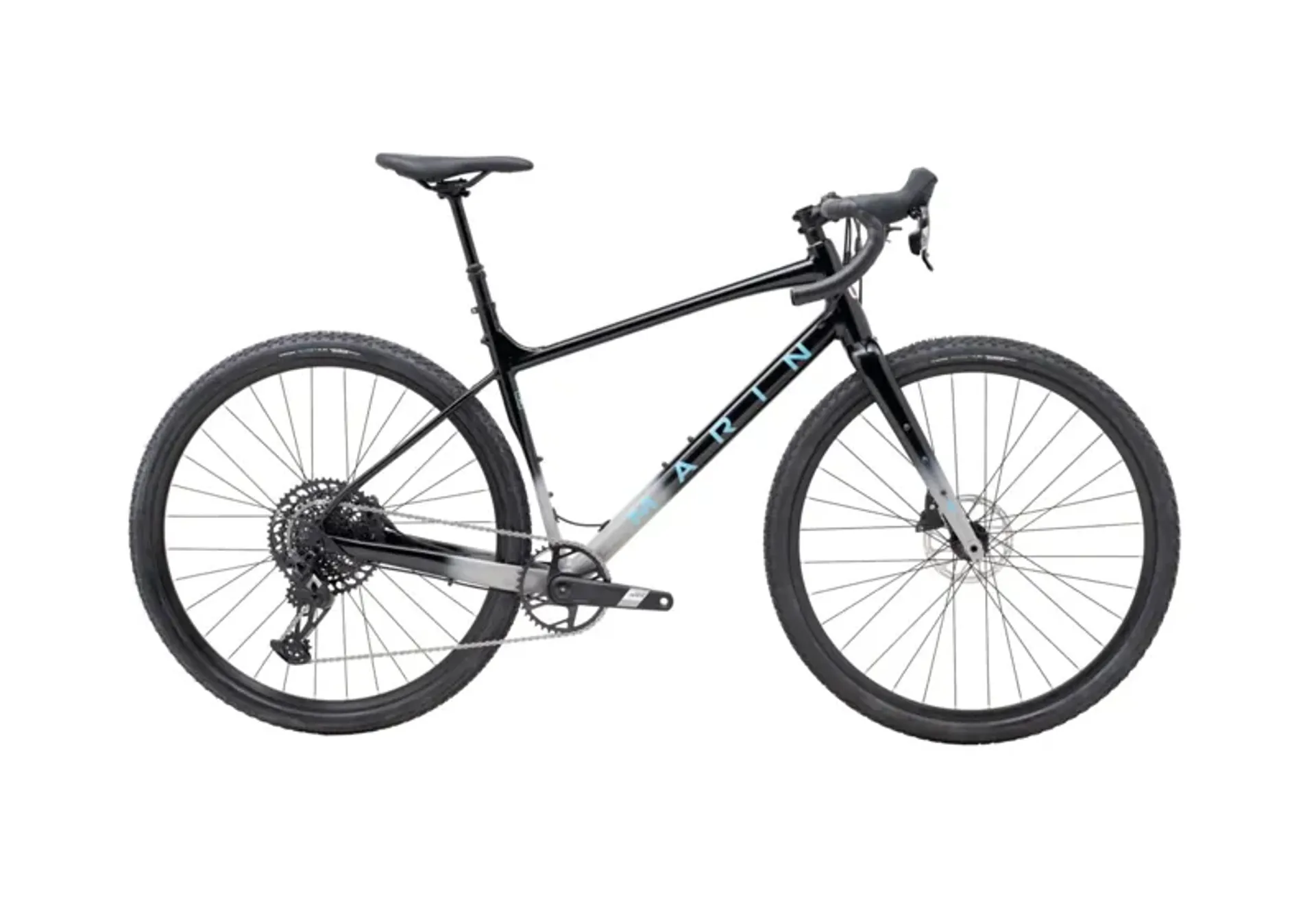

Marin Gestalt XR Apex Road Bike In Gloss Black/Gray/Blue

£2,279.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin Gestalt XR Apex Road Bike In Gloss Black/Gray/Blue

Season:2025

Brand:Marin

Code:7375690BLK

ADVENTURE ON AND OFF-ROAD RIDING

The Gestalt X is our hard-charging, rough-and-rowdy take on what gravel and adventure bikes can do. Break off the fire road, down the singletrack and charge further and faster than ever before. All while keeping the versatility, challenge and fun of a bike with drop handlebars.

The Gestalt X is built with a longer-than-the-usual wheelbase, slack-like-your-mountain-bike head angle, low-slung frame, wide bars, short stem, big and chunky tires with room for up to 50mm on 700c or 54mm with a 650b wheelset.

The Gestalt XR takes gravel to the next level. XR brings our MTB-inspired, Series 3 aluminum Gestalt X frame and adds a gravel-specific SRAM Apex 12-speed drivetrain, Apex hydraulic disc brakes, a TranzX dropper post, cushy and grippy 44mm wide Vee Tire Rubber and heaps of our own bespoke Marin components.

Features:
  • SERIES 3 FRAME - The Gestalt X features a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.
  • BEYOND ROAD GEOMETRY - The Gestalt X takes our Beyond Road Geometry to the next level of aggressive road and dirt exploration with a blend of endurance road handling and mountain bike sensibilities.
  • DISC BRAKES - The Gestalt X features the latest flat mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance.
  • TIRE CLEARANCE - The Gestalt X frame and fork has clearance for up to up to 700Cx45 or 650Bx47 Road Plus tires.
  • BRAZE-IN CABLE ROUTING - New braze-in cable/hose routing is seek, clean, and rattle-free.
Technical Information
  • FRAME
    Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
  • FORK
    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
  • RIM
    Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
  • HUB REAR
    Forged Aluminum Alloy, 142x12mm, Disc, 32H
  • HUB FRONT
    Forged Aluminum Alloy, 100x12mm, Disc, 32H
  • SPOKES NIPPLES
    14g Black Stainless Steel
  • TIRES
    Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible
  • DERAILLEUR REAR
    SRAM Apex 1 12-Speed
  • DERAILLEUR FRONT
    -
  • SHIFT LEVER
    SRAM Apex 1 1x12-Speed
  • CRANKSET
    SRAM Apex 1, 40T
  • BOTTOM BRACKET
    SRAM DUB BSA
  • CHAIN
    SRAM NX
  • CASSETTE
    SRAM CS-XG-1275, 10-52T
  • BRAKES FRONT
    SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor
  • BRAKES REAR
    SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor
  • BRAKE LEVERS
    SRAM Apex 1 Hydraulic Disc
  • HANDLEBAR
    Marin Butted Alloy, Compact 16º Flared Drop
  • STEM
    Marin 3D Forged Alloy
  • GRIPS
    Marin Shock Absorbing Perforated Tape
  • HEADSET
    FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • SEATPOST
    TranzX YSP38J, Size S-M 70mm, Size L-XL 110mm Travel, 27.2mm
  • SADDLE
    Marin Beyond Road Concept Elite
  • PEDALS
    -
  • EXTRAS
    Bolt-On Thru-Axles F and R
