Team Bahrain victorious put the fifth generation scultura thoroughly through its paces, winning mountain top stages of the tour de france and the vuelta a espana before the bike was even launched.
Team Bahrain victorious put the fifth generation scultura thoroughly through its paces, winning mountain top stages of the tour de france and the vuelta a espana before the bike was even launched.
Merida

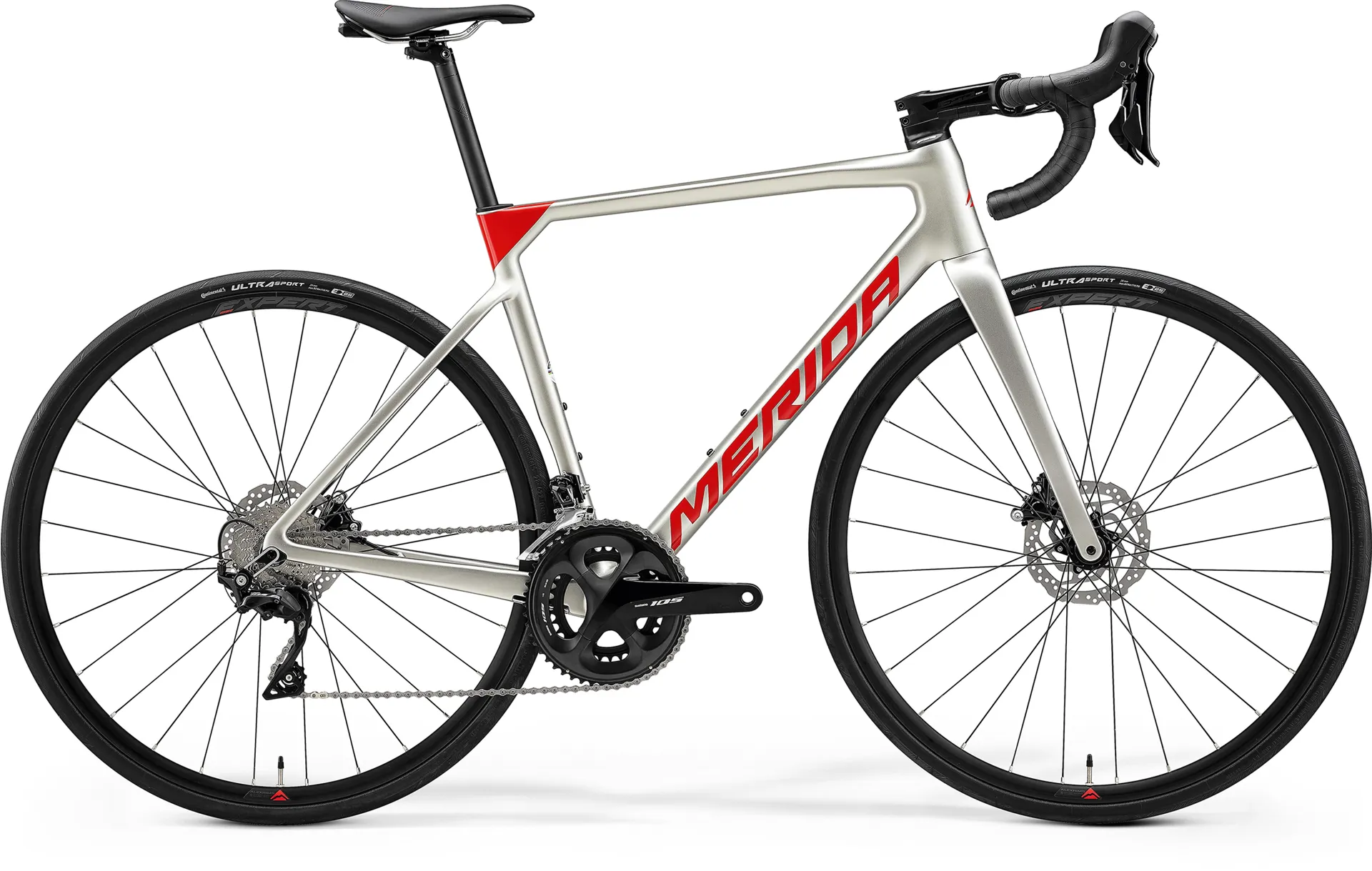

2022 Merida Scultura 4000 Road Bike in Silver

£2,250.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2022 Merida Scultura 4000 Road Bike in Silver

Season:2023

Brand:Merida

Code:P-N350

Team Bahrain victorious put the fifth generation scultura thoroughly through its paces, winning mountain top stages of the tour de france and the vuelta a espana before the bike was even launched.

Gen 5 keeps the scultura's fabled lightweight, agility and rider comfort focus and even manages to improve on both measures.The scultura now incorporates learnings from the reacto in terms of aerodynamics; they now share the same race proven geometry.

Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made. The new scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort.

The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent. A couple of mountain top, grand tour stage victories underline that point quite well!
Technical Information
  • Frame
    CF3 carbon, race geometry. Internal cable routing, 12mm through axles, flat mount rear brakes with Disc Cooler, 1 1/2 to 1 1/4 headtube. Max tyre - 30c
  • Fork
    Scultura CF3 Disc; Material - carbon; Max. tyre size: 700 x 30c; Disc cooler technology
  • Headset
    FSA ACR
  • Stem
    FSA SMR ACR; aluminium; -6 degree rise. Stem length: 90mm (XXS/XS), 100mm (S), 110mm (M), 120mm (L/XL)
  • Handlebar
    Merida Expert SL; aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL)
  • Grip
    Merida Road Expert
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano 105
  • Brake Calipers
    Front: Shimano 105; hydraulic disc brake caliper with Shimano RT10; 160mm rotor Rear: Shimano 105; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
  • Tyres
    Front: Continental Ultra Sport III; 700 x 28c; Kevlar bead, folding; Rear: Continental Ultra Sport III; 700 x 28c; Kevlar bead, folding;
  • Wheel Size
    700c
  • Wheels
    Rims: Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Double Butted Black stainless Front Hub: VP CLK170F; 100x12mm; 28 spokes, Center lock. With Merida Expert SL axle Rear Hub: VP CLK270R; 142x12mm; 28 spokes; Center lock. With Merida Expert SL axle; including removable lever; 6/4mm allen key
  • Speeds
    22
  • Front Derailleur
    Shimano 105
  • Rear Derailleur
    Shimano 105; GS
  • Shift Levers
    Shimano 105 disc
  • Chain
    KMC X11
  • Cassette
    Shimano CS-R7000; 11-30 teeth; 11 speed
  • Chainset
    Shimano 105; 50-34 tooth chainset. Crank length: 165mm (XXS,XS), 170mm (S), 172.5mm (M), 175mm (L,XL)
  • Bottom Bracket
    Shimano BB71-41B, Pressfit 86.5
  • Pedals
    Not included
  • Saddle
    Merida Expert SL; V-mount; including Merida minitool
  • Seat Post
    Merida Expert CC; Carbon; 27.2mm diameter; 15mm lay back
  • Inner Tubes
    Standard, Presta valve
  • Spokes
    Stainless, 14g
