Merida

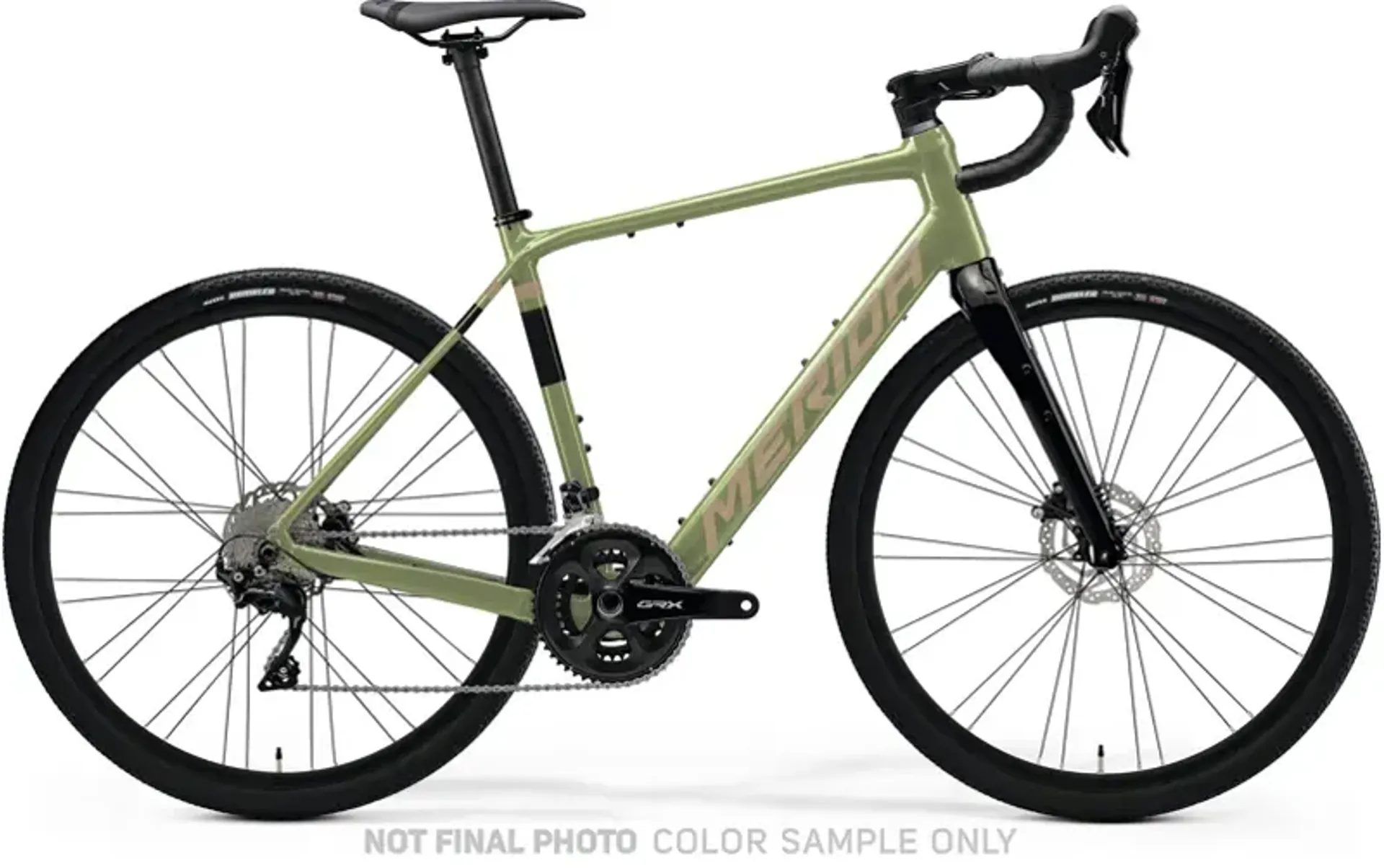

Merida eSilex 400 E-Gravel Bike In Green/Brown

£2,500.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Merida eSilex 400 E-Gravel Bike In Green/Brown

Season:2025

Brand:Merida

Code:P-Q905

Sometimes a small push is all that's needed to open up a whole new world of exploration.

The eSILEX 400 pairs a sleek, lightweight frame with versatile gravel tyres on 700c rims to the helping hand of the latest MAHLE ebikemotion X30 hub drive motor and a 250 Wh battery to help expand your riding horizons. A fully-featured frame and carbon fork with plenty of mounts is ideal for overnight bikepacking trips or smaller adventures, while the smooth shifting and powerful braking of the Shimano GRX groupset with double chainset makes for reliable companions, on or off the road.

If you are often looking for the off-road alternative when you are out on your bike or simply enjoy exploring the path unknown, then the eSILEX might be the perfect assisted bike for you. The latest rear-hub MAHLE X30 system with integrated battery offers a neutral support level whenever your journey requires some e-motor assistance. You can even use an externally mounted 208 Wh MAHLE Range Extender to boost range. Depending on where you want to take it, the eSILEX is available in the more rugged 650b or the more fast-rolling 700c set-up. Both versions come with gravel/off-road tyres for extra grip.

Features:

  • Latest MAHLE ebikemotion X30 hub motor gives natural feeling assistance.
  • Triple butted aluminium frame with built-in 250 Wh battery.
  • Sleek 'normal bike' silhouette and low weight.
  • Shimano GRX drivetrain and hydraulic brakes.
  • Fast-rolling 700c wheels with gravel tyres.
  • Multiple frame and fork fixing points for extra carrying capacity.
Technical Information
  • Frame
    Lite II - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards, 27.5 x 47c
  • Fork
    Merida Silex CF2; Tapered; carbon, Max. tyre size: 700 x 42c without mudguards, 700 x 35c with mudguards. Max 27.5 x 50c
  • Headset
    Merida 8158
  • Stem
    Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise; length: 80mm all sizes
  • Handlebar
    Merida Expert GRII; aluminium; 400mm (XS/S), 420mm (M), 440mm (L/XL)
  • Grip
    Merida Expert
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano GRX400
  • Brake Calipers
    Front: Shimano GRX400 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor Rear: Shimano GRX400 2 piston hydraulic disc brake caliper with Shimano RT26 160mm rotor
  • Tyres
    Front: Maxxis Rambler 700 x 40c; Kevlar bead, folding; EXO Rear: Maxxis Rambler; 700 x 40C; Kevlar bead, folding; EXO
  • Wheels
    Rims: Merida Comp SL; 17mm inner rim width; 22mm rim depth; aluminium Spokes: Black stainless Front Hub: Shimano HB-TC500; 100 x 12mm; 28 Spokes; Centerlock
  • Front Derailleur
    Shimano GRX400
  • Rear Derailleur
    Shimano GRX400
  • Shift Levers
    Shimano GRX400
  • Chain
    KMC e10
  • Cassette
    Shimano CS-HG50; 11-36 teeth; 10 speed
  • Chainset
    Shimano GRX600; 46-30 tooth chainset with 170 mm-XS/S/M, 175 mm-L/XL crank
  • Bottom Bracket
    Shimano RS500 BSA
  • Pedals
    VP Components - VPE-891
  • Saddle
    Merida Comp SL; V-mount
  • Seat Post
    Merida Expert; aluminium; 30.9mm diameter; in-line
  • Motor
    Mahle ix250Wh Battery Pack, Mahle X30 Hub motor, 40Nm
  • Battery Capacity
    250Wh
